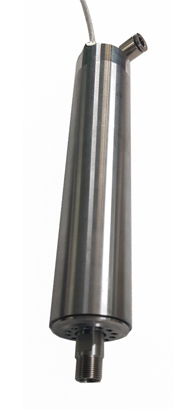

SP35A-6002
Technical Specifications
| MOUNT DIA | mm | 35 |
|---|---|---|
| SPEED | R.P.M | Max. 60,000 |
| MAX FREQUENCY | Hz | Max. 1,000 |
| VOLTAGE | V | 75 |
| OUTPUT | kW | 0.2 |
| TORQUE | Nm | 0.04 |
| CURRENT | A | 1.6 |
| MOTOR POLES | P | 2 |
| COLLET / TOOL HOLDER | ER8 | |
| TOOL CHANGE | Manual | |
| TOOL CLAMPING RANGE | mm | ~5.0 |
| COOLING SYSTEM | Air | |
| BEARING | Pcs | |
| HOUSING DIAMETER | Ø | 35 |
| WEIGHT | Kg | |
| MOTOR PROTECTION | ||
| SEALING | Air | |
| INNER TAPER RUN-OUT | μ | 2 |
| LUBRICATION | Grease | |
| 사용용도 | ||
