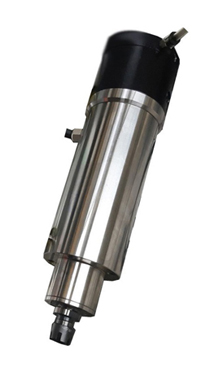

XDL-3860A
Technical Specifications
| MOUNT DIA | mm | 60 |
|---|---|---|
| SPEED | R.P.M | Max. 60,000 |
| MAX FREQUENCY | Hz | Max. 1,000 |
| VOLTAGE | V | 200 |
| OUTPUT | kW | 1 |
| TORQUE | Nm | 0.16 |
| CURRENT | A | 3.9 |
| MOTOR POLES | P | 2 |
| COLLET / TOOL HOLDER | S5T | |
| TOOL CHANGE | ATC | |
| TOOL CLAMPING RANGE | mm | 1~6 |
| COOLING SYSTEM | AIR | |
| BEARING | Pcs | 4 |
| HOUSING DIAMETER | Ø | 60 |
| WEIGHT | Kg | 3.5 |
| MOTOR PROTECTION | PTC | |
| SEALING | AIR | |
| INNER TAPER RUN-OUT | μ | <2 |
| LUBRICATION | GREASE | |
| 사용용도 | ||
